Taking Stuff Apart: Bell & Howell 2143 XL Video Camera

-
I came across a Bell & Howell 2143 XL, a quick search on ebay showed that this thing had little to no value. Its from the 1978-1980's and is an impressive mess of electronics and machinery. This particular device is video only.

Here it is:
Video Camera - Front


Other side and tape:
Video Camera - Back

I peeled off all the fake leather stuff and there were some markings underneath:
Video Camera - Peeled "Leather"

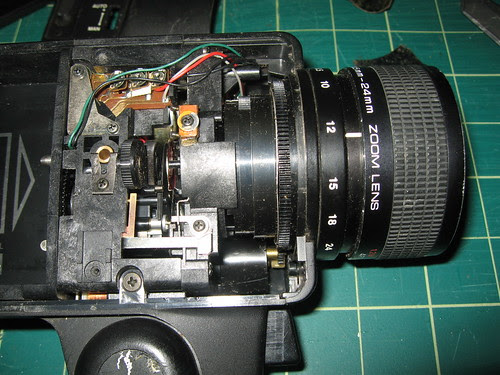

Most of this seems to control the focus and shutter:
Video Camera - Focus / Shutter

Other side:
Video Camera - Electronic Guts

Some sort of lens array:
Video Camera - Lens Assembly

The lens area and shutter area were two distinct pieces, on the left is the lenses and the right is the shutter:
Video Camera - More Mechanical Guts

I cracked open the tape too, basically two chambers with tape that moves between them and not much else:
Video Camera - Tape
